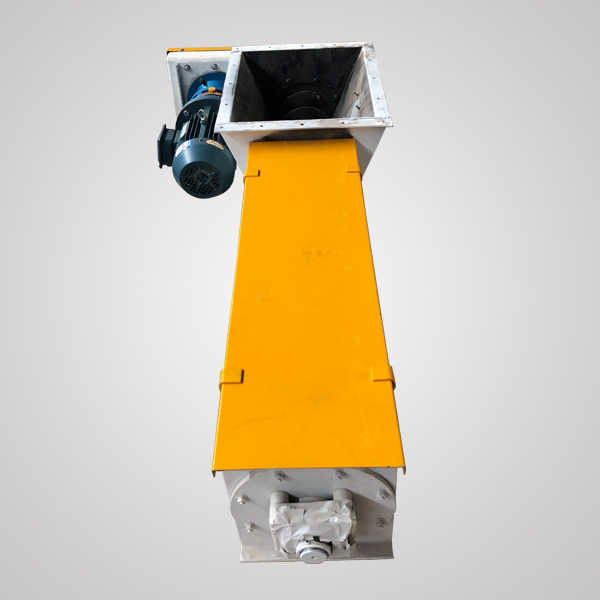

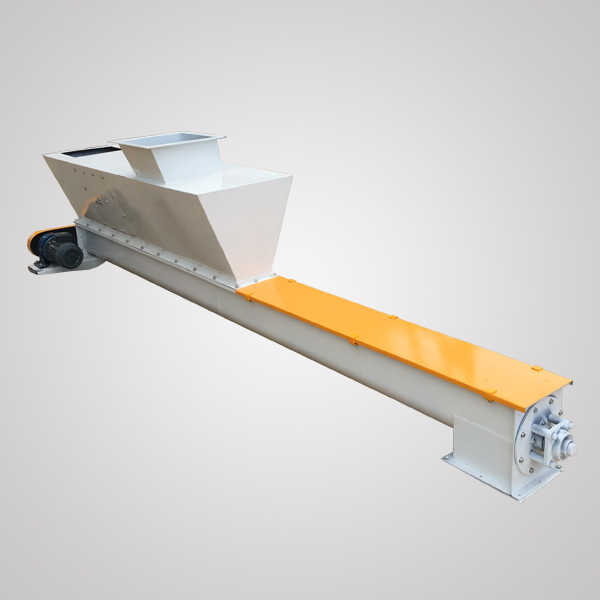

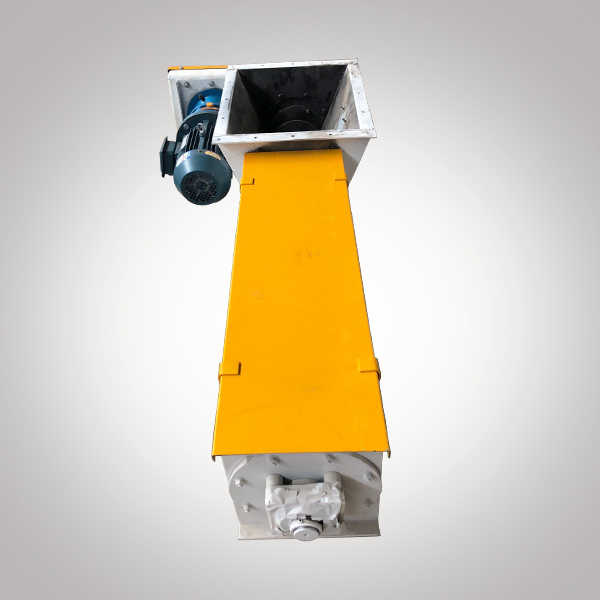

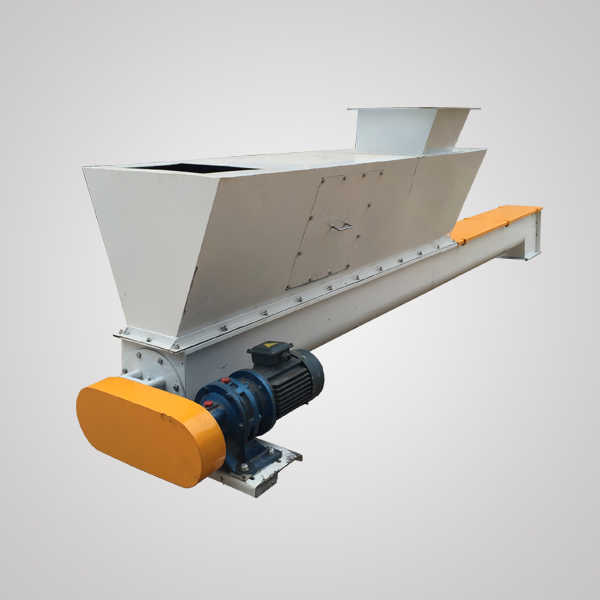

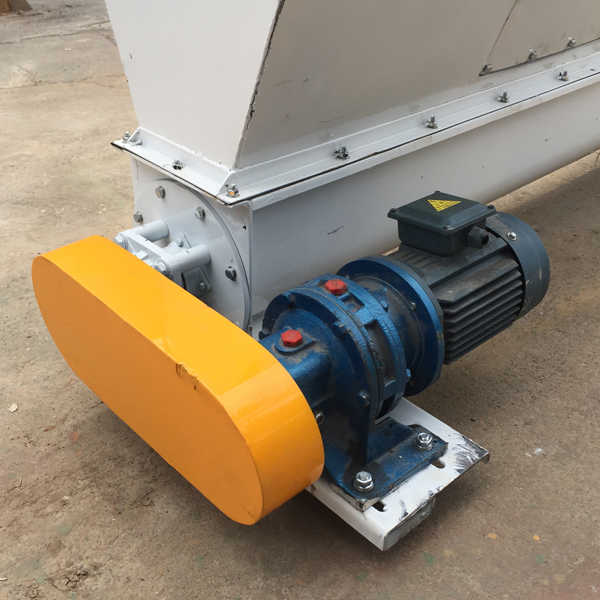

Screw Conveyor
screw conveyor is suitable for continuously conveying loose materials such as powder, granular and small piece material , which includes: clay powder, pulverized coal, cement, sand, grain, small piece of coal , cobble, and cast iron filings, etc, and grain which their temperature is less than 200℃.
The machine is a kind of fixed device mechanical conveying equipment, suitable for horizontal conveying of granular or powdery materials such as grain and oil feed, or close to horizontal (inclination of inclination angle <20°, the conveying length is generally up to 40 meters.
The spiral has many forms like left-handed and right-handed. The inlet end and outlet end of wall bearing housing can be exchanged, and the process is flexible.
High-performance SKF bearings are used to ensure the quality and service life of the equipment.
working principle:
The rotating spiral blade conveys the material as the screw conveyor starts, which is a device that uses the rotation of the spiral blade to push the material to move along the trough to complete the horizontal and inclined conveyance.
Features and advantages:
1. High capacity and reliable running.
2, strong adaptability, easy installation and maintenance, long service life.
3. small area occupied, low noise, and flexible in the position of the inlet and outlet.
Screw Conveyor:
Screw Conveyor:
|
Model |
TLSS16 |
TLSS20 |
TLSS25 |
TLSS32 |
|
Capacity（t/h） |
3-7 |
8-12 |
14-20 |
25-30 |
