8-12 t/h Feed Pellet Line for Poultry & Livestock

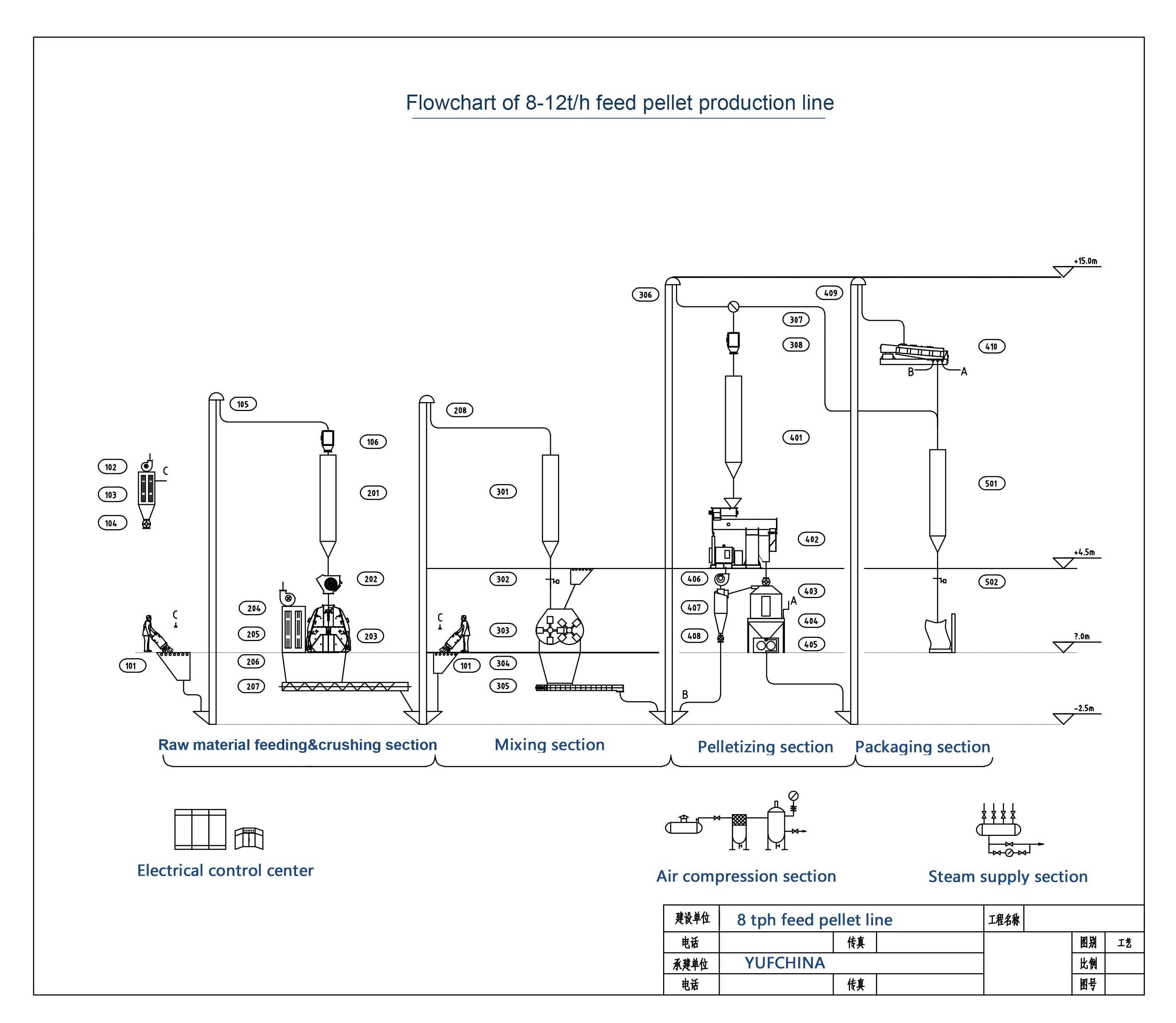

Fully automatic Feed Pellet Production Line including the following systems:
1. Cleaning and Crushing system (raw materials always mixed with impurities, wihch will affect the pellet quality and damage the mill, so before hammer mill we need clean the raw material by pre-cleaner & permanent magnetic sleeve);
2. Batching and Mixing system (each animal feed making formula includes several different materials. This systems realizes the volume of all the materials flow into the mixer exactly accurate according to the formula);
3. Pelleting, Cooling and Crumbling system (hot steam from boiler is to kill the becterias and to soft the materials, which increases the pellet quality and the prodcution capacity.
Cooling machine to make the pellets suitable for long time storage. Crumbling machine is to break the pellets to small sizes, specially for small baby chickens.);
4. Pellet sieving and Packing system (rotary screener and the automatic packing machines are the main parts of this system in the automatic Feed Pellet Production Line. )
Production line parameters：
Grain hammer mill: SFSP66*80 (110 kw)
Mixer: SJHS2A (22 kw)
Pellet mill: SZLH 420 (112 kw)
Conditioner: stainless steel TZ38*2000 (2.2 kw)
Pellet Crumbler: SSLG15*150 (11 kw)
Other equipment. Total Power: 377 Kw Production line floor space:
11m * 11m * 25m ( L * W * H)
Steam consuption: 2T boiler
Shiping Information: 3x40'HQ container/G.W: 20T

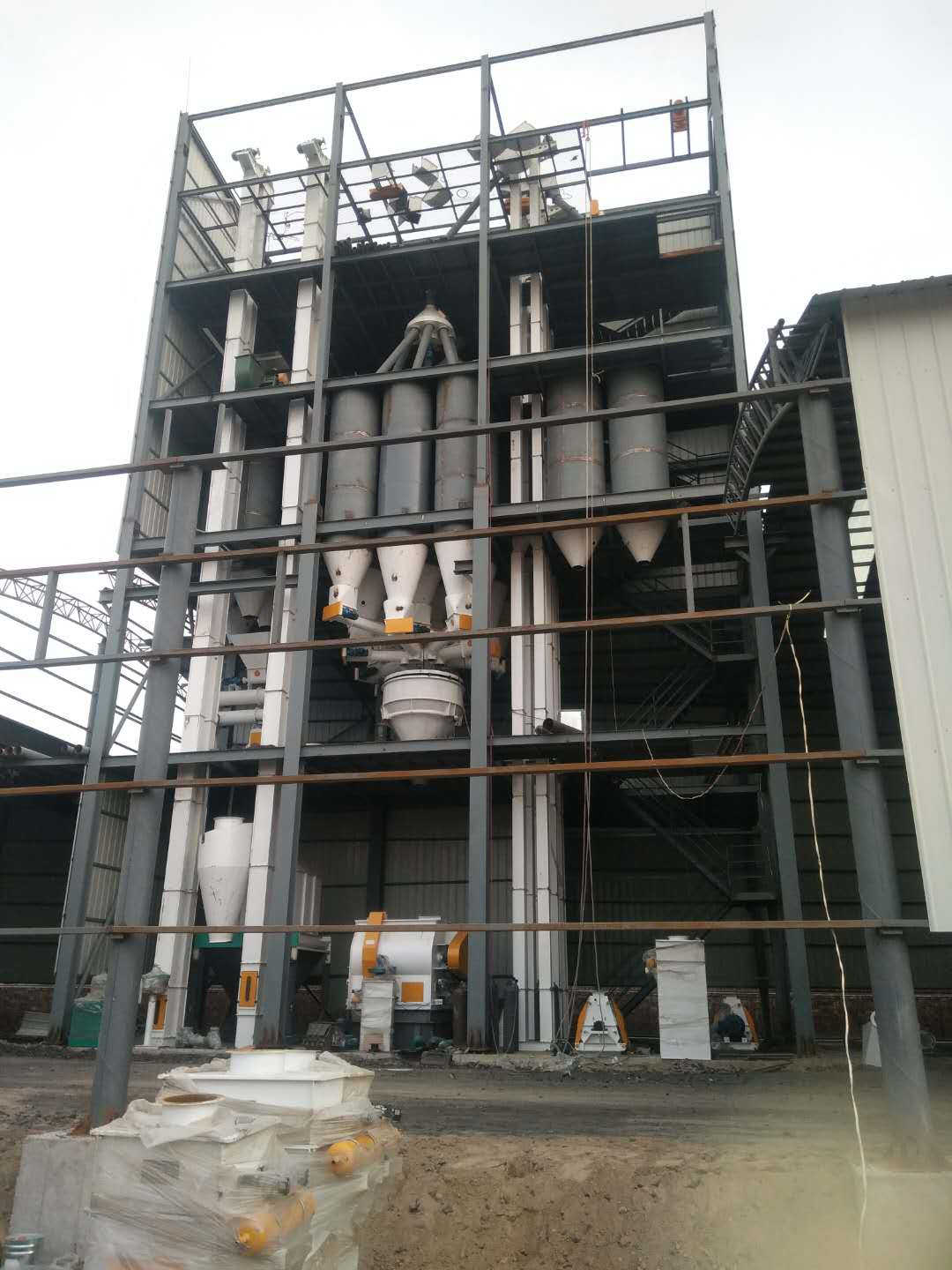

8-12 t/h feed production line installation site
Advantage：
1.Manufacturing Process according to internationally advanced technology standard;
2.Quality matching with the European standard;
3.The key components are imported to ensure longer service life and lower cost for maintenance;
4.Raw material contacting parts are made by stainless steel;
5.Widely used for pelleting the high-grade livestock and poultry feed.
Scope of application：
The animal feeding pellet line has the difference formula according to the growth of stages . All the formula has the full nutrition and the suitable proportion, which is good for animal growth and intensive animal husbandry industry.
