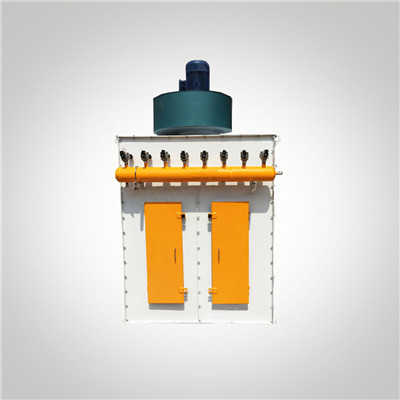

Pulse dust collector / bag filter
The pulse dust collector has the characteristics of large ash kinetic energy Good cleaning effect and high efficiency. The machine is small in size, light in weight, simple in structure, easy to install and easy to maintain. The pulse dust collector is widely used in the dust-removing gas purification treatment system of building materials, metallurgy, mining, chemical, coal, non-metallic mineral ultra-fine powder processing, etc. It is ideal equipment for environmental dust removal.
The dust filter consists of filter room, filter bag, net gas chamber, ash bucket, flap valve, pulse injection device, system fan, electric cabinet, etc.
Features:
1)、Adopt tdfk type of solenoid valve, increase the venting amount and get better effect for dust removing.
2)、Using cloth bag and box structure, compact structure, small area occupied, and high dust removal efficiency. It uses a special cloth to filter dust and has a good dust filtering effect.
3)、The individual filter bags are individually running and do not affect the overall work of the dust removal unit.
Pulse dust collector / bag filter:
| Model | TBLMF6 | TBLMF8 | TBLMF12 | TBLMF15 | TBLMF24 | TBLMF32 | TBLMF40 | TBLMF54 |
| Handling air volume | 350-700 | 409-816 | 540-1080 | 1008-2006 | 1620-3240 | 2892-5784 | 3612-7224 | 4152-8034 |
| Fitration area | 3 | 3.4 | 4.5 | 8.4 | 13.5 | 24.1 | 30.1 | 36.7 |
